Net-work Access Control System

【From】admin 【Release time】2009/5/26 【The number of visits】1765

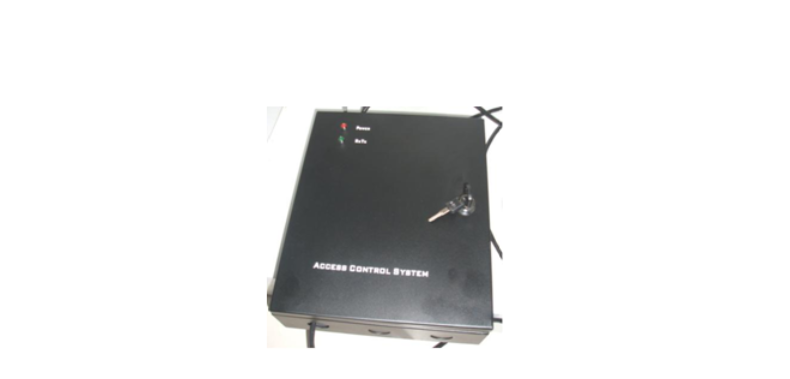

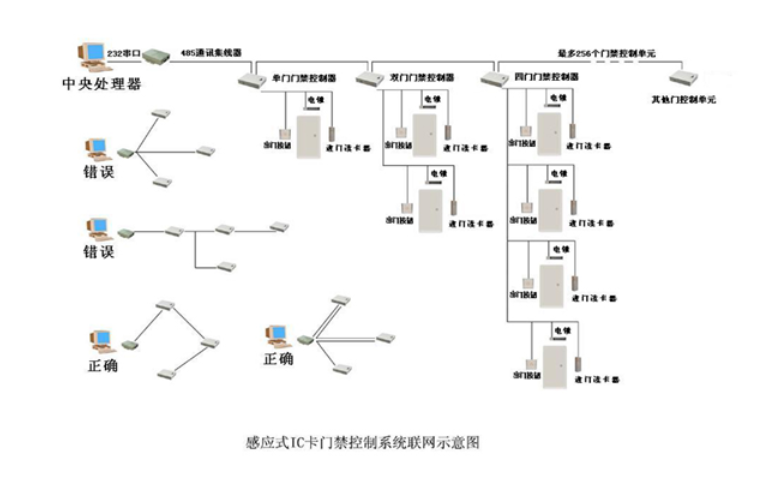

485 Access controller:   485 Series Access Controllers include Single Door, Double Door, 4-Door, Embed Access Controller, Lift and Storage Cabinet Controller. It is the new controllers with the most updated integration solution. It has a  lot of advantages, such as: works stable, fast communication, big memory, strong compatibility. It uses a Flash ROM and stable 485 Communication, a single system can be networked with 255 controllers, and the communication distance is 1200 meters.

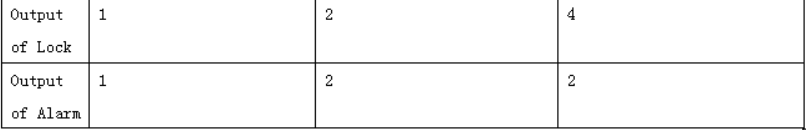

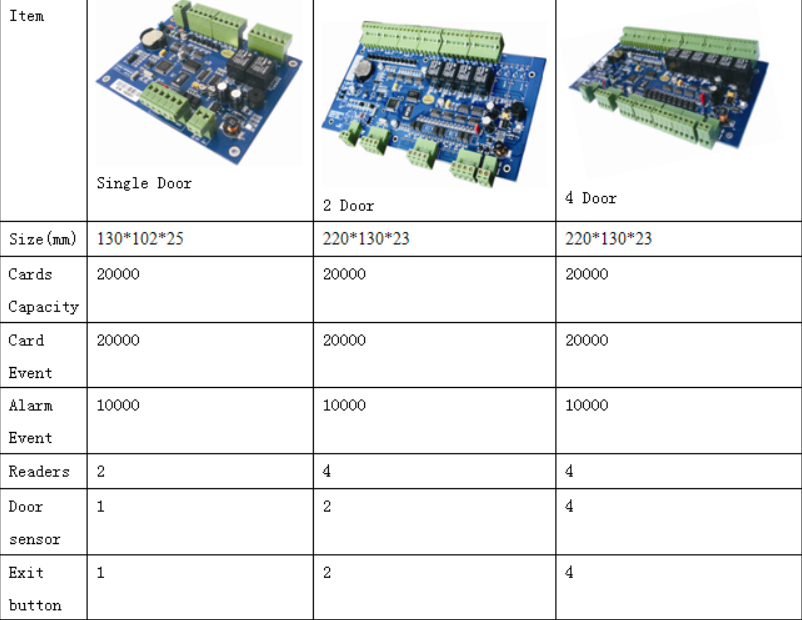

Single Door controller: Hardware Features: l         The controller uses flash memory,with 20000 cards and 20000 event records and 10000 alarm records. l         The access time zone of one door could have 16 groups, and it can be set up with multi ways of access, such as: Card, Card+Password,Password, Double Card, and First Card to open etc. l         Support Remote Operation to open and close the door, Remote Open/Close the fire alarm, Security Alarm. Support normal close(NC) and lock door function via computer order. l         Support Alarm Output of multi Alarms, such as: Invalid Card, Invalid Time, Door Alarm and Timed Out of Open。Multi door controller support to lock to each other. l         Lift(Storage Cabinet) controller could Expans 3 Circuit boards,with 128 input and 128 output. l         All output nodes support LED display. l         All devices could be installed into one system l         With the software, it supports the Work Attendance,on-line patrol real-time. Support management monitor by multi users, multi controllers.   All type of 485 controller parameter:

Software feature

l         It is the easiest access software.

l         Support 485 and TCP/IP controllers, all are managed by same one software.

l         Support Simpled Chinese, Traditional Chinese and English; Can choose any language, you can add other languages too.

l         Friendly XP style interface, smoothly operation. Similar operations as Windows such as single click, double click, Right-Key click etc.

l         Display of access data real-time, such as: any kind of alarm, reading card, collect data automatically.

l         Support 2 databases: MS Access and MS SQL sever, the defaulted is MS Access.

l         Provide the form of Debug, it will be easy to install the devices, maintain it and manage it.

l         Provide the event log, so can check the operation and management history, easy to track  and easy to maintain.

l         Support to import and export dada, easy for customer to process the data.

l         Startup the software to synchronize the time automatically, it takes 2 steps to update the controllers.

l         Can be upgraded to network version. With the web, it can control the doors real-time.

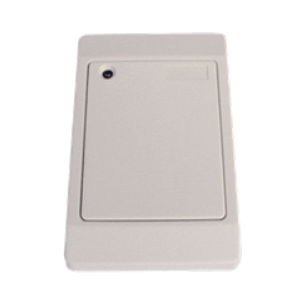

Card reader

Parameter:

Working voltage: DC7~12 V

Read range: 5~15cm

Interface port: RS485

Frequency: 125 khz

Size: 7.5*11.5*1.5

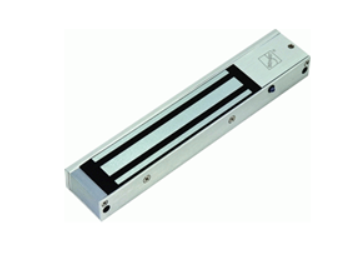

Electric magnetic lock

Parameter:

Main lock part size: 250*47*27mm

Attach lock part size: 185*38*12.7mm

Input voltage: DC 12V, DC 24

Working current: 12V/480 m A ,  24V/240 m A

RS 485 Adapter

Parameter:

Port: RS232-RS-485

Transfer speed: 0-115.2kbps
