Model:Cabinet Optical Fiber Marking Machine
Laser power:20W/30W/50W(for choice)
Optical quality:<2
Marking the scope:150*150/ 200*200/ 300*300(mm)
Engraving line speed:≤10000mm/s
Minimum linewidth:0.012mm
Repeatability:±0.003mm
Type of cooling:Built-in air cooling
Operating environment:Clean no dust
Humidness:5%-75%
Optical maser wavelength:1064nm
Carving depth:≤1.0mm(20W)/ ≤2.0mm(30W)/ ≤3.0mm(50W)
Minimum character:0.15mm
The laser repetition rate:20KHz-100KHz
The machine electricity power:≤500W
The laser module life:>100000h
Temperature:10℃-35℃
Power supply:220V 50HZ/ 110V 60HZ
Place of Origin: Shandong, China (Mainland)
Certification: CE/ ISO
After-sales Service Provided: Engineers available to service machinery overseas
Product features
Cabinet Optical Fiber Marking Machine,Safety fast Easy to learn Strong power Highly efficient and stable.
1.The machine has simplify structure;
2.Optics system adopts full sealed structure, a red light preview function;
3.Good appearance , easy to operate;
4.Photoelectric conversion efficiency is high, high beam quality, line is fine , light spot;
5.Cooling air cooling way , low energy consumption;
6.Powerful software, compatible Coreldraw、CAD、Photoshop software;
7.Support PLT、PCX、DXF、BMP etc.,can be used directly SHX、TTF word stock;
The fine major advantage of perfection
Red light preview function
Easy to operate
High beam quality
Line is fine
Cooling air cooling way
Low energy consumption
Mark clearly
Support PLT、PCX、DXF、BMP ETC
Agility efficient

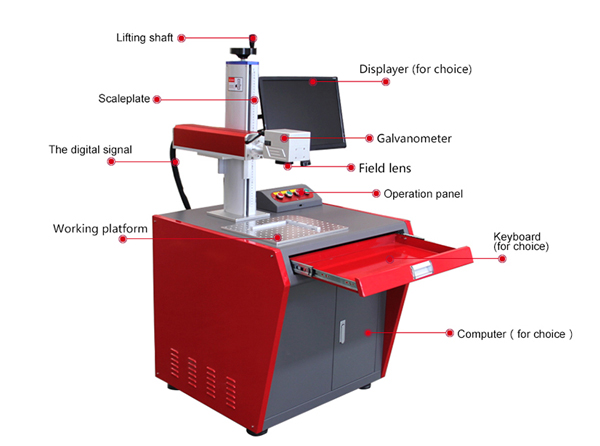

Product details
CONTROL PANEL
Humanized control system , the new USB dustproof plug design , control system easy to learn , can be used offline.
LIFTING SHAFT
Lift error steady lifting , high precision , yarn , marking more accurate , fine.
The galvanometer
The galvanometer scanning system , adopting new technologies,working principle of the new material , new craft , new design and manufacturing.
Field lens
Small size , suitable for bad environment , friendly interface , think what you see is what you get;you can see the input screen , the screen shows the information , will be one of the native target information.
Working platform
Compact structure , strong and lightweight , small , interface is simple , flexible adjustable machining direction , deft.first-line brand,its just like the powerful heart which can provide the laser machine with steady and forceful power.
Scaleplate
High performance scale , engraving effect is more exquisite , calibration more accurate.
High quality radio frequency laser
Good beam quality , laser tube long life , high cost performance. Under the condition of the laser off without, metal and nonmetal material marking light pulse,the peak power,repeat the wide frequency range.
Security socket
Proprietary aviation plug , docking is simple , rapid , accurate , low impedance , signal output more smoothly.
Special control card for optical fiber
The software is powerful and supports PLT,PCX,DXF,BMP, etc., and can directly use SHX and TTF fonts.Support automatic coding, print serial number, batch number, date, bar code, qr code, automatic jump number, etc.
Keyboard mouse tray
Keyboard mouse tray, convenient,user-friendly design.
Product size
1450mm*790mm*625mm
Product packaging
Standard export package,free-fumigation plywood case
Product parts
Certification
1. ISO 9001:2008 certificates;
2. Alibaba. com Assurance Supplier;
3. CE certificates
4. FDA certificates...etc.
Applied materials
【Applicable materials】: Metallic material and non-metallic material,such
as gold, silver, copper, aluminum, steel, iron, acrylic, plastic, PVC,paper, double
color board, alloy and oxide, ABS, epoxy resin, ink, ceramics, etc.
【Applicable industries】:Plastic transmission button, IC chip, digital product
parts, precision machinery, , jewelr, y, sanitary ware, measuring tools and tools,
watch glasses, electrical, electronic components, hardware accessories, hardware
tools,mobile phone fittings, plastic products, medical equipment,high - precision
products such as building materials.
