Automatic Plotter

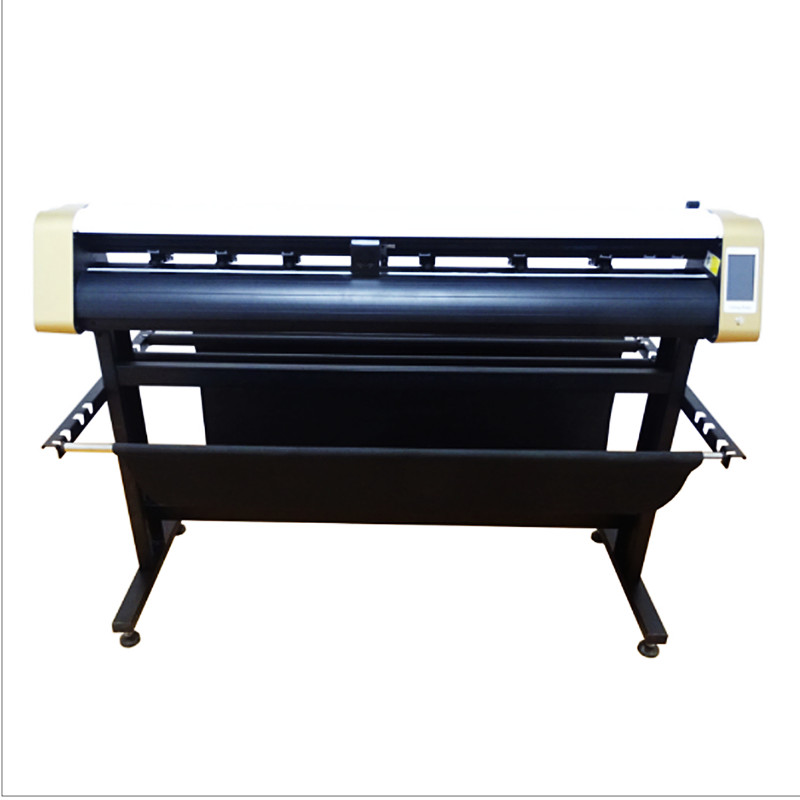

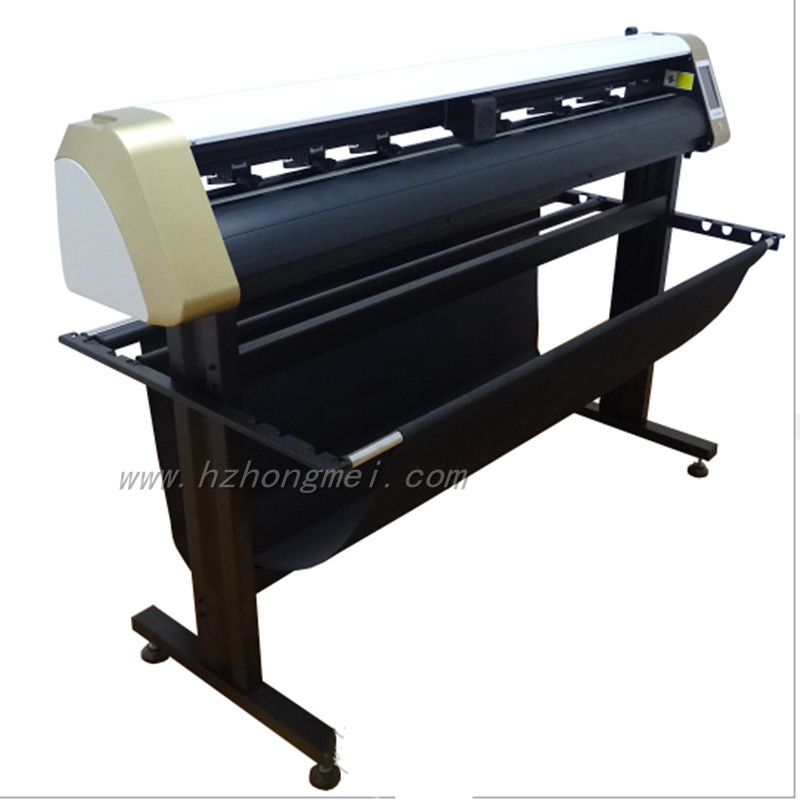

Touch Screen Auto Contour Cutting Plotter Vinyl Cutter Plotter
Touch Screen Auto Contour Cutting Plotter Vinyl Cutter Plotter
The Cutting Plotter Machine Is Suitable For Die Cutting All Shapes Labels. It Is Widely Used To Produce The Sticker Which Design By Your own.
Filed: packaging proofing, clothing plate, making car beauty industry, Make Signs for shop windows, cars and vans., cutting labels, heat pressing logos and slogans onto T-Shirts.
Material: vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.
Main Features:
1. Model: EH-1350CMP
2. Three interfaces: USB / COM / U-disk
3. Special main board for camera

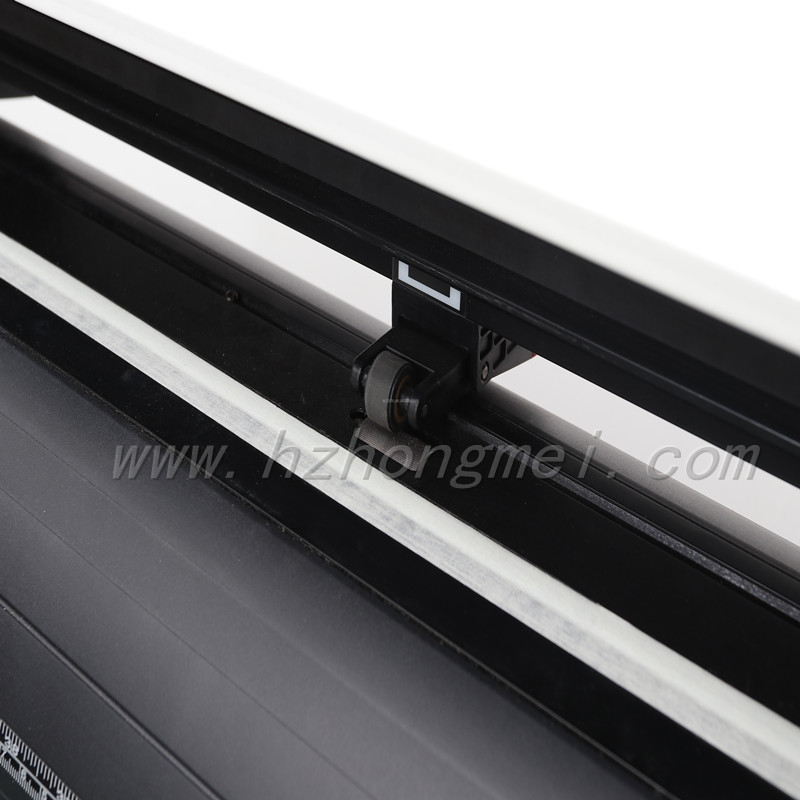

4. Casting carriage, high precision
5. Can cut 1mm size
6. Automatic contour function
7. Stepper motor, low sound, high speed
8. Double layer carton packing
9. One year warranty
10. In-time after sale service
Paramenters:
| Model | EH-720CTS | EH-1350TS |
| Max. media width | 720mm | 1350mm |
| Max. cutting width | 630mm | 1260mm |
| Main board | Special main board for camera | |
| Language | CH/EN | |
| Contour type | Auto contour | |
| Accuracy | +/-0.01mm | |
| Feeding accuracy | 10m | |
| Interface | USB/COM/U-disk | |

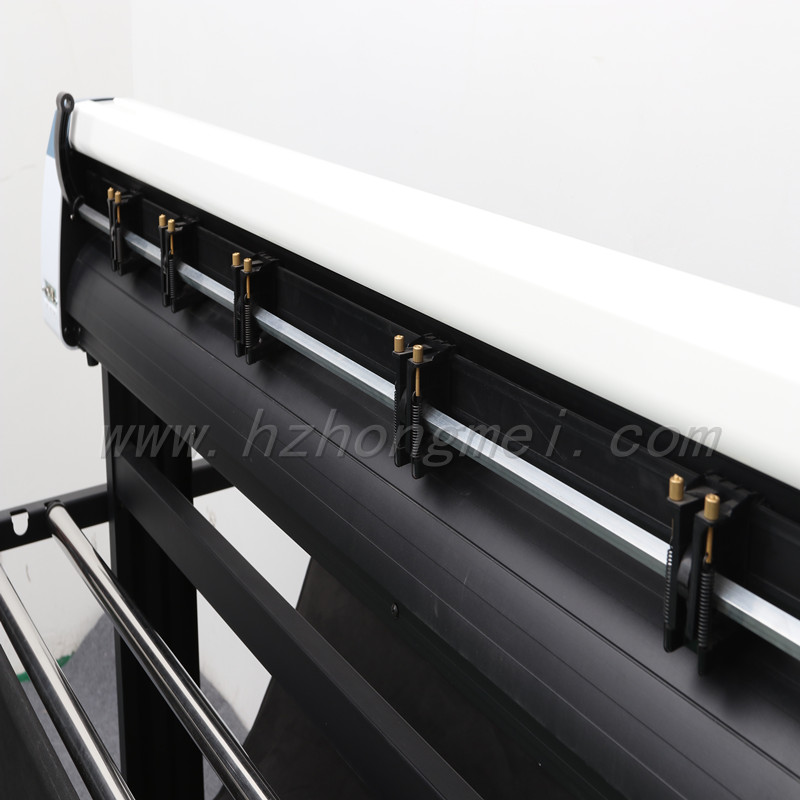

| Feeding Roller | Steel thorn roller | |
| Drive motor | Stepper motor | |
| Carriage | Casting car | |
| Stand | Sheet metal bracket with basket | |
| Speed | 2--800mm/s | |
| Force | 20-500g | |
| Power supply | AC 85-264V | |
| Recommend software | Signmaster,Artcut,Coreldraw,Signcut,Flexi | |
| Machine power | < 100W | |
| Packing Size | 1020*330*420mm | 1650*330*420mm |
