Automatic Plotter

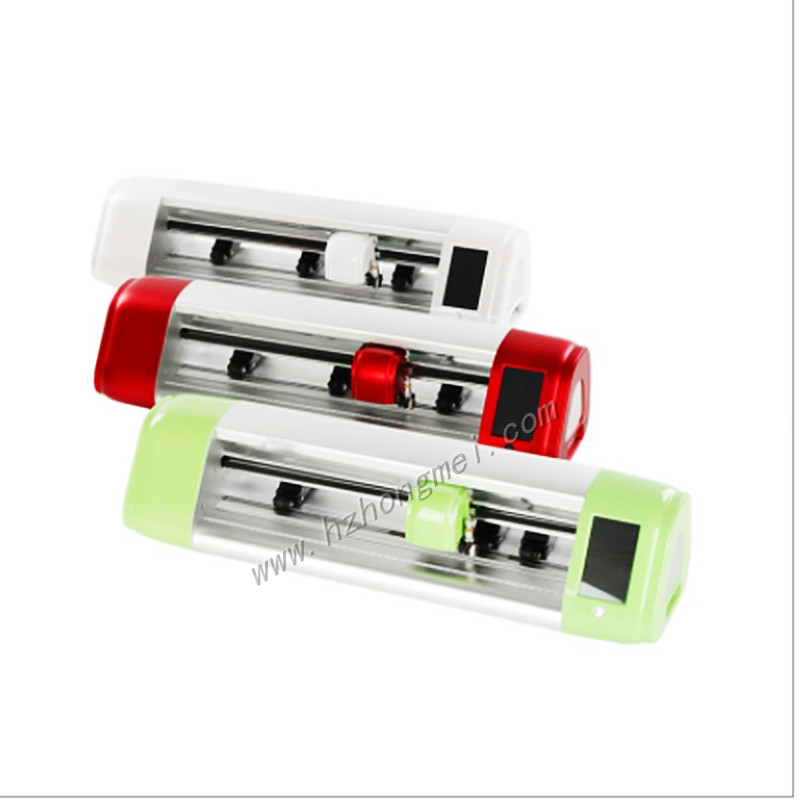

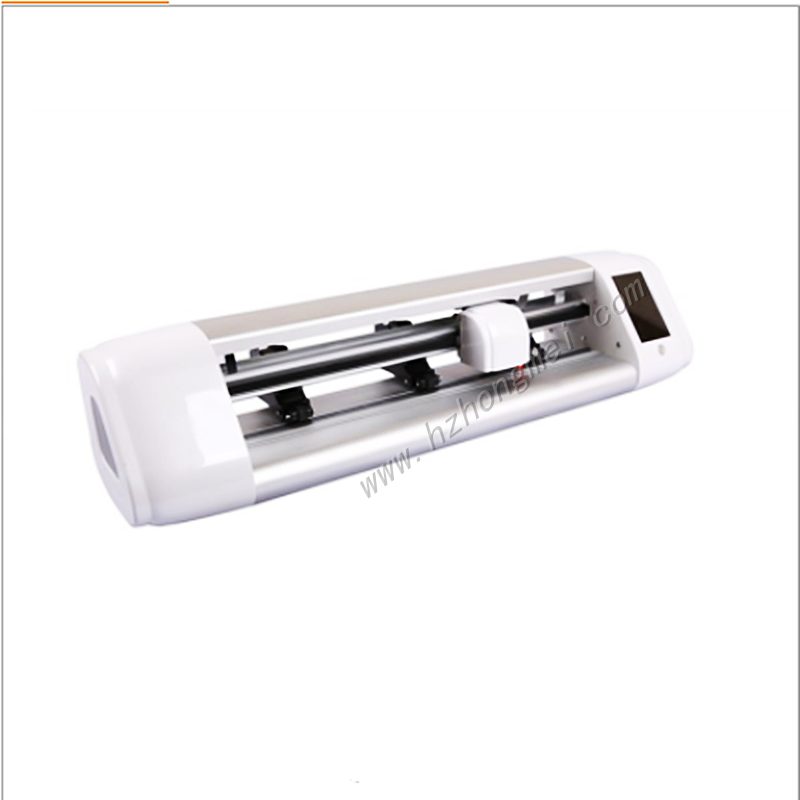

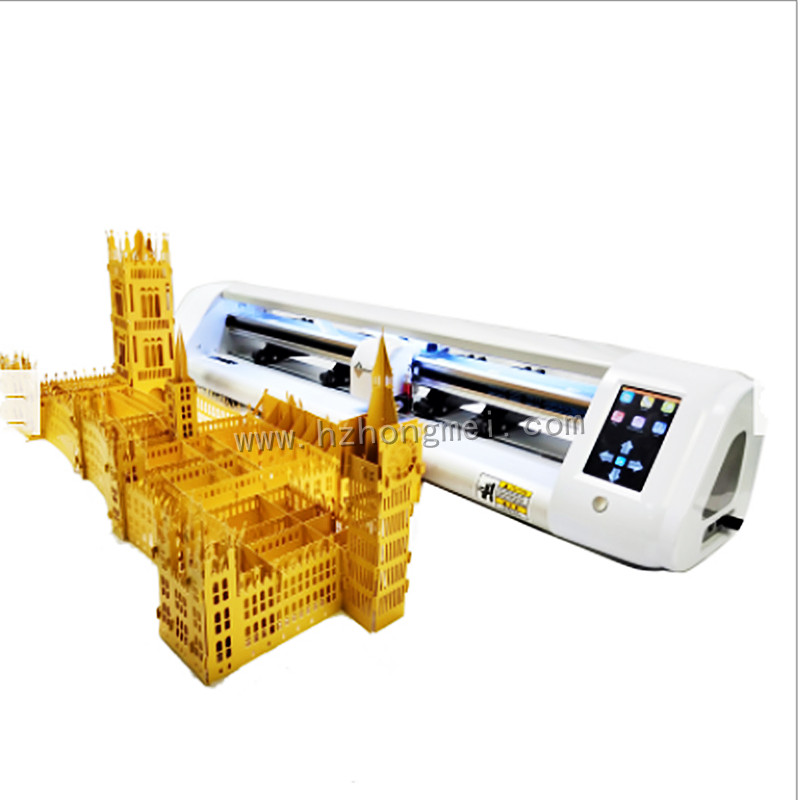

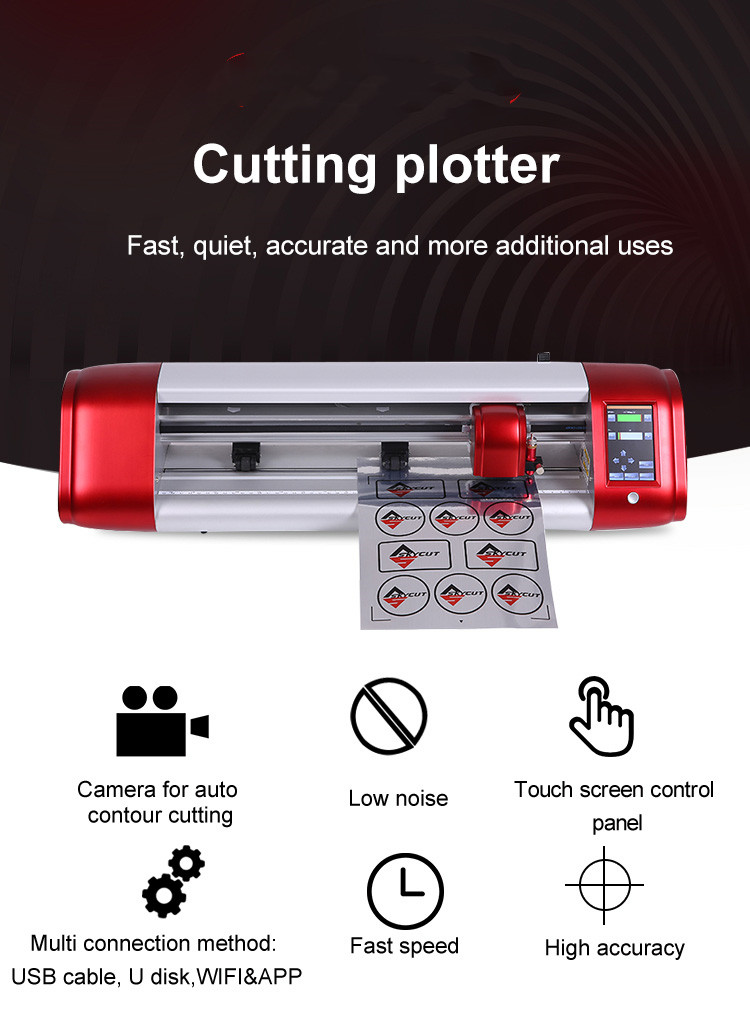

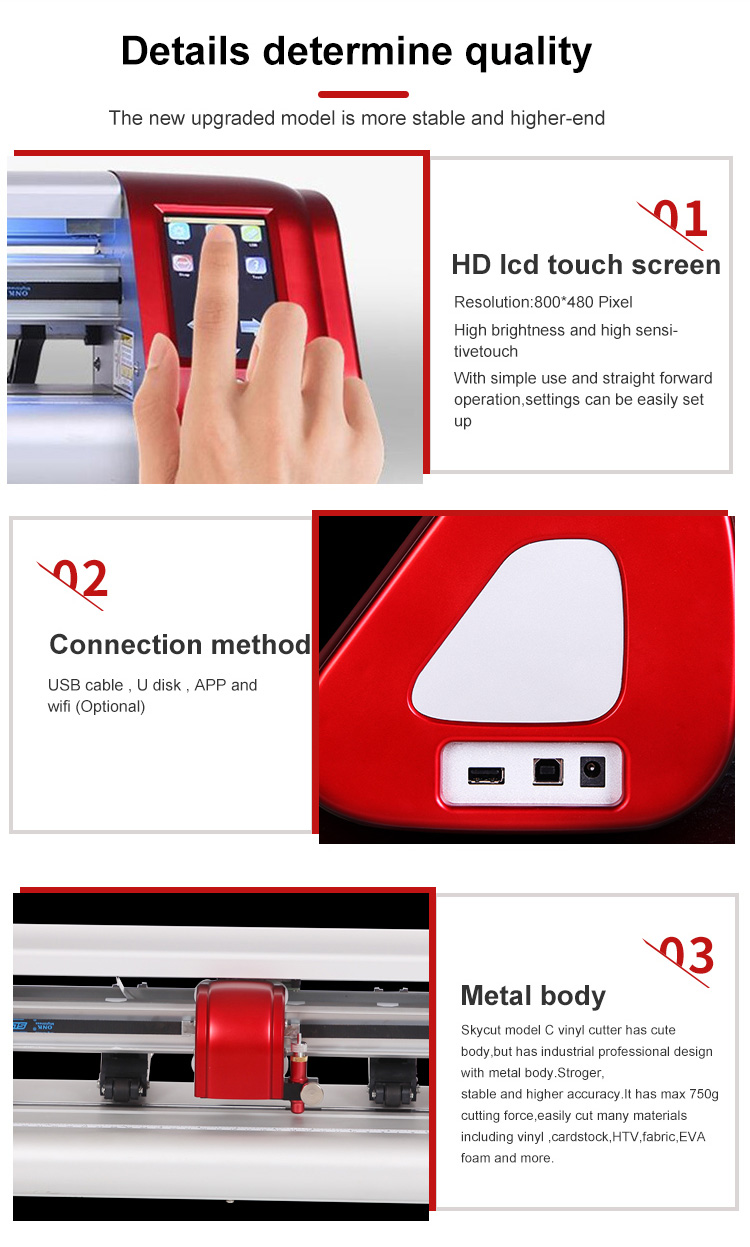

Factory direct Skycut CH24 24 inch Camera contour vinyl cutter plotter
|
Model
|
SKYCUT C24
|
|
Max media width
|
720mm
|
|
Max cutting width
|
610mm
|
|
Max contour cutting width
|
570mm
|
|

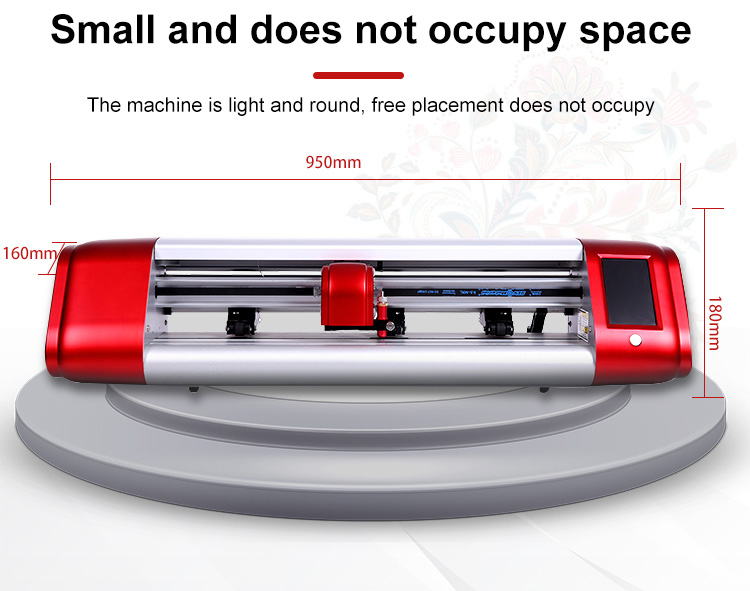

Indicate dimensions
|
950*160*180mm
|
|
Packing size
|
1000*320*280mm
|
|
Packing Gross weight
|
13kg
|
|
Max force
|
800g
|
|
db values
|
65
|
|
Number of heads
|
1
|
|
Floor stand
|
option
|
|

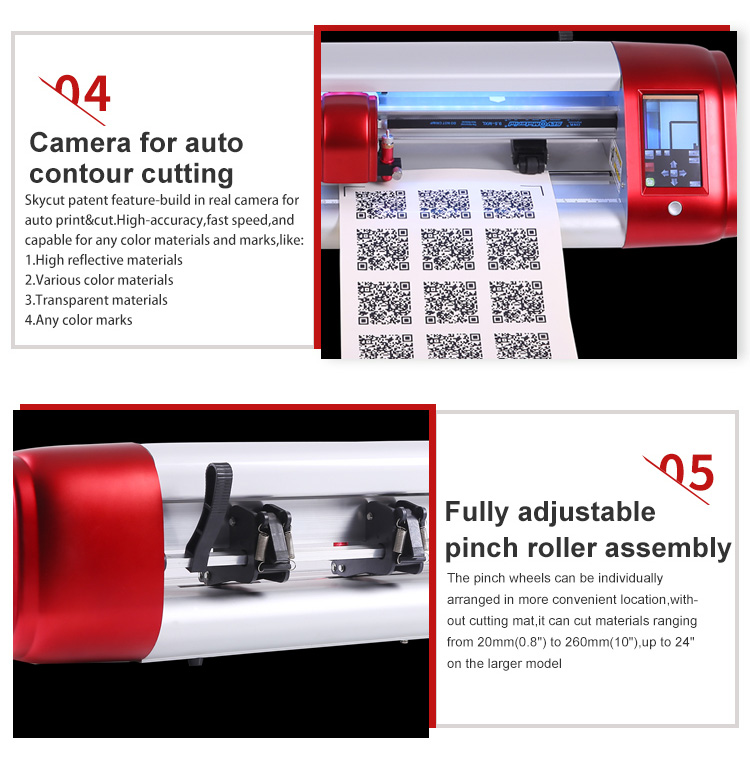

Auto contour cut
|
Camera
|
|
CorelDRAW directly
|
Yes
|
|
Power supply, V/Hz
|
24V 1.5A
|
|

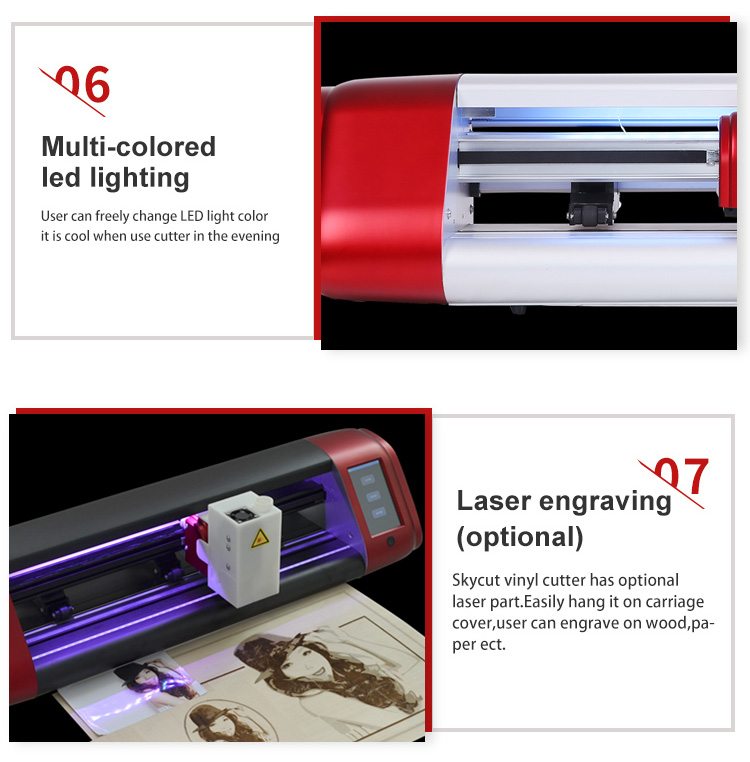

Laser engrave option
|
Yes
|
|
Scratch engrave option
|
Yes
|
|
Motor
|
stepper
|
|
Processor memory
|
128MB
|
|
Cutting precision
|
+/- 0.01mm
|
|
Repeat precision
|
0.082 mm
|
|
Max moving speed
|
700mm/s
|
|
Max cutting speed
|
600mm/s
|
|

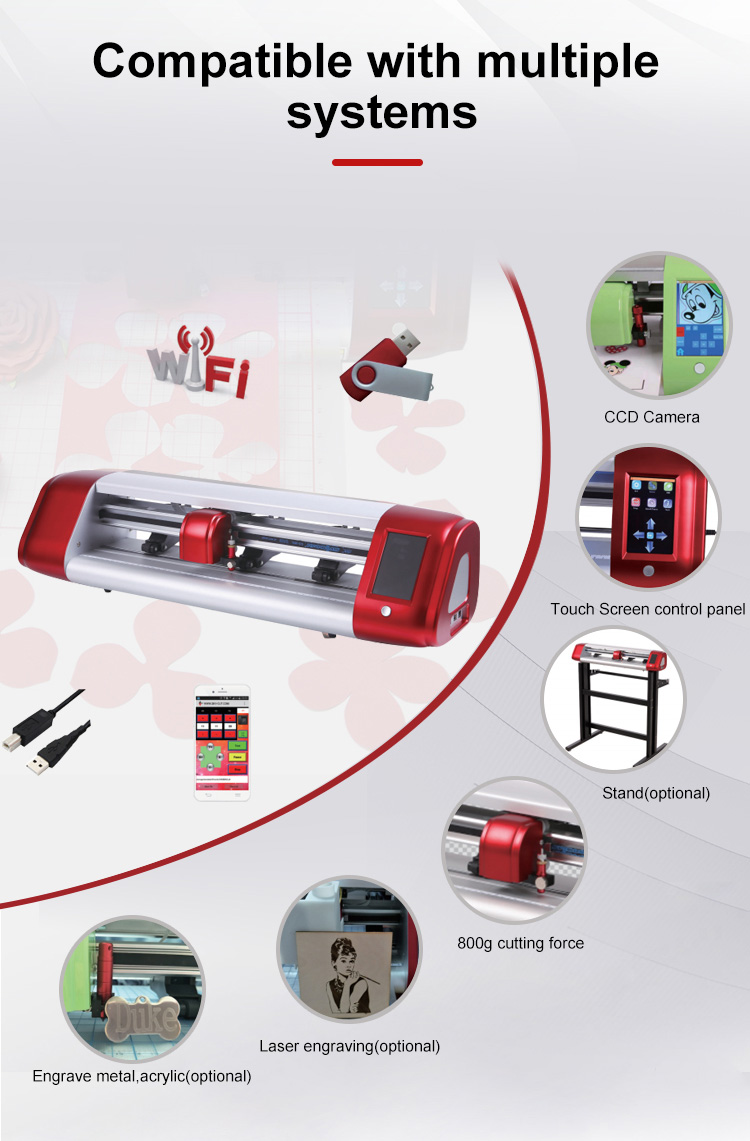

Connector interface
|
USB flash/ WIFI(option)/ USB cable
|
|
Power
|
< 100W
|
|
Working environment
|
+5°C - +35°C
|
